Boom Joint Transducer Measures Mechanic Angles.

Name: Boom Joint Transducer Measures Mechanic Angles
Brand: GDJD
Price: 5000 USD

Buy cheap Boom Joint Transducer Measures Mechanic Angles. product

Brand Name : GDJD

Model Number : VA-S-360-61B

Certification : CE

Place of Origin : China

MOQ : 20PCS

Price : RMB 5000/PCS

Payment Terms : L/C

Supply Ability : 300PCS/Per Month

Delivery Time : 30 work days

Packaging Details : Carton Box

Material : Aluminium

Application : Measure the angle of the arm support

Measurement Range : ± 180 Degrees

Accuracy Better then : ± 0.1 Degrees

Storage temperature : -40 … +85 Degrees Celsius

Protection PCB : IP 67

Contact Now

Boom Joint Transducer Measures Mechanic Angles.

Technical Data

Electrical data

Supply Voltage 10-30V DC

Power supply max 100 mA

Measurement Range ± 180 Degrees

Accuracy Better then ± 0.1 Degrees

Bus Connection Full compatible with the ISO 11896

Communication profile DS 301 DSP-406 for absolute linear encoder

**Node ID Adjustable 1–127 with DIP Switch.

**Baud Rate Adjustable with DIP Switch. 7 different baud rate setups (10 kb/s, 20

kb/s, 50 kb/s, 125 kb/s, 250 kb/s, 500 kb/s, 1000kb/s).

Mechanical Data

Housing Aluminium housing, anodized

Vibration resistance Broadband Noise,

20 G RMS all axis in frequency range: 20 - 2000 Hz

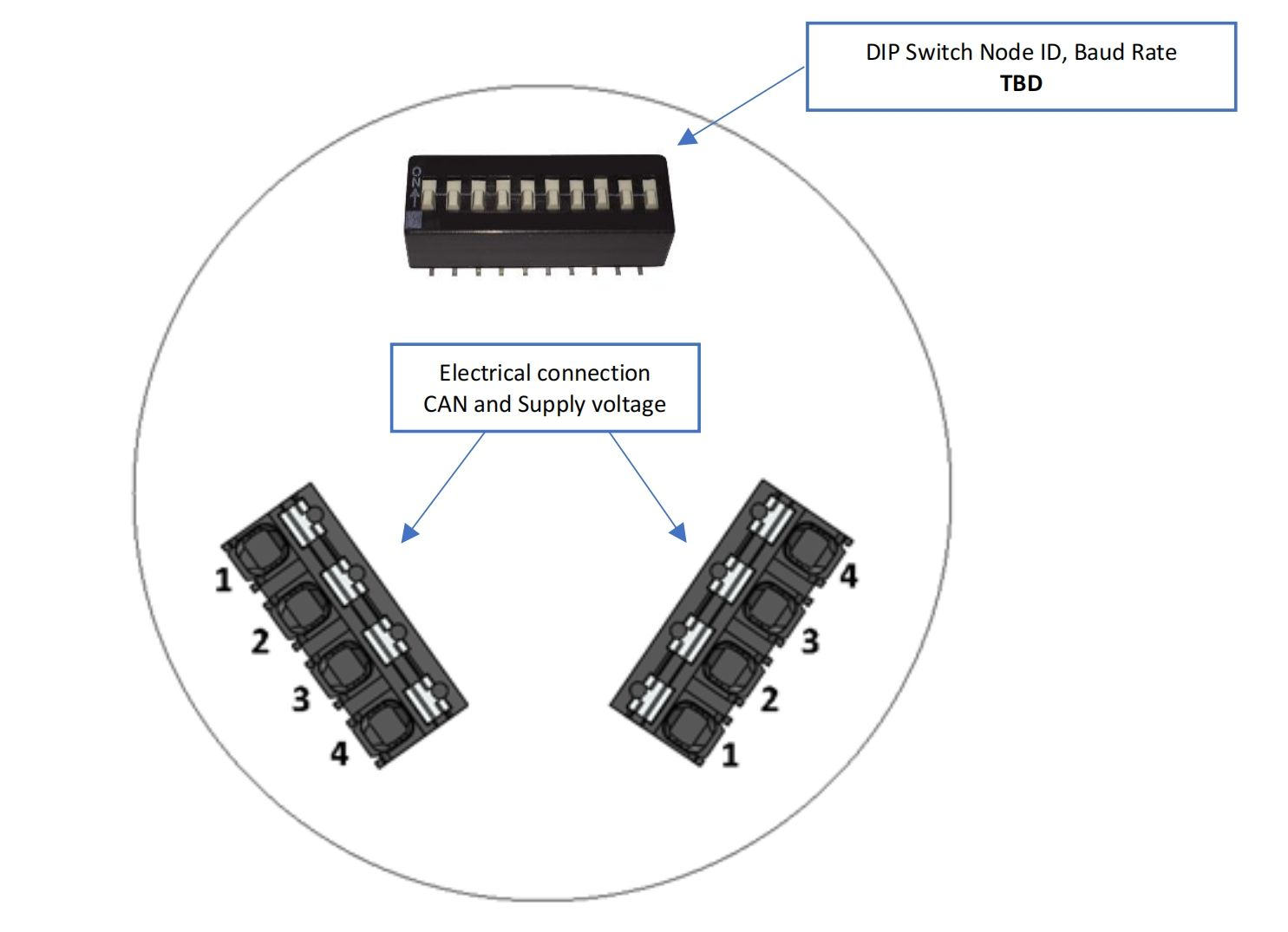

Connection Terminal block for operating voltage and CAN bus.

4 Pins

**DIP Switch For adjustable Node ID and Baud Rate.

10 positions.

Operating temperature -30 … +50 Degrees Celsius

Storage temperature -40 … +85 Degrees Celsius

Protection PCB IP 67

Boom Joint Transducer Measures Mechanic Angles. Images
